Description

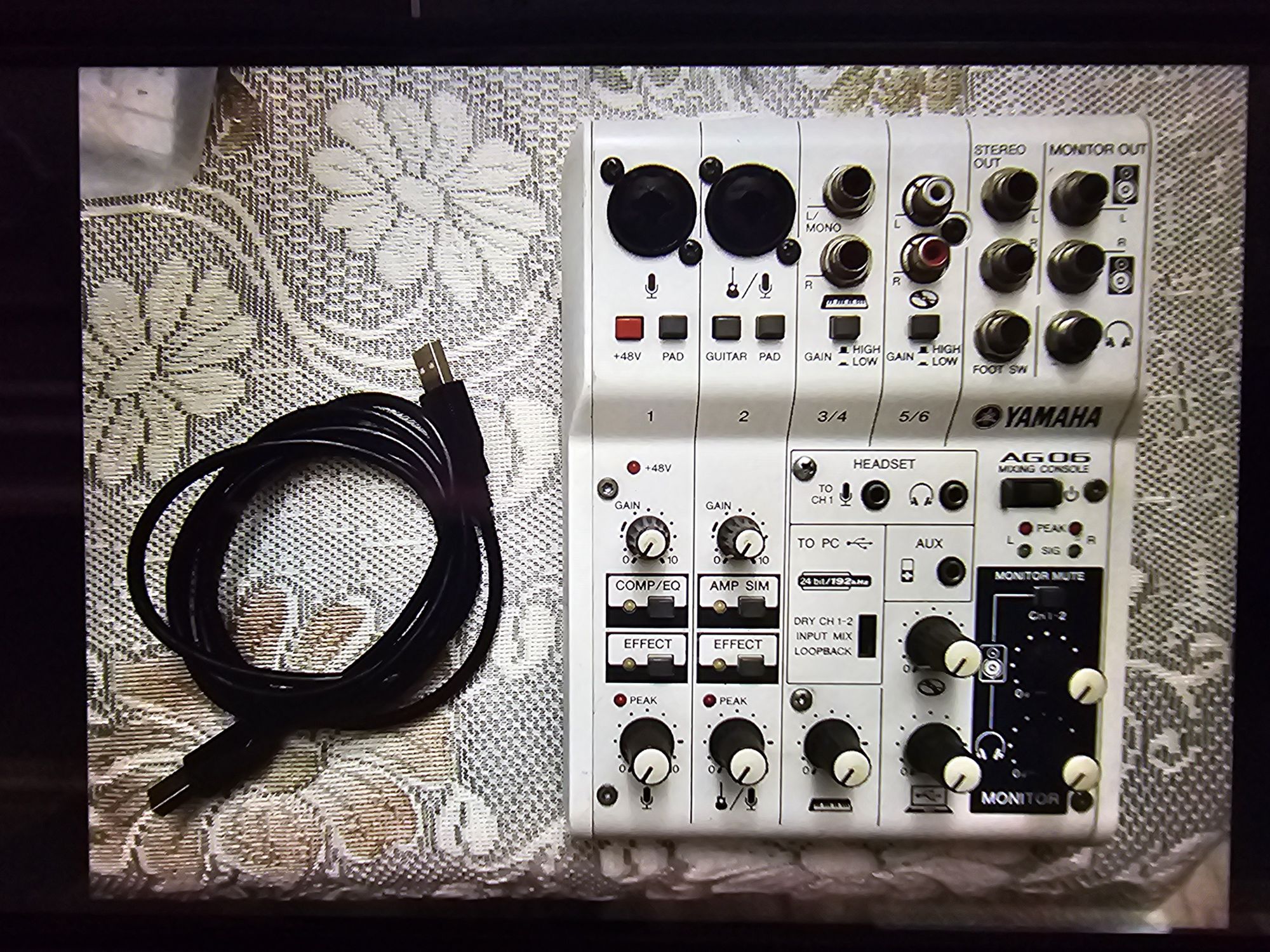

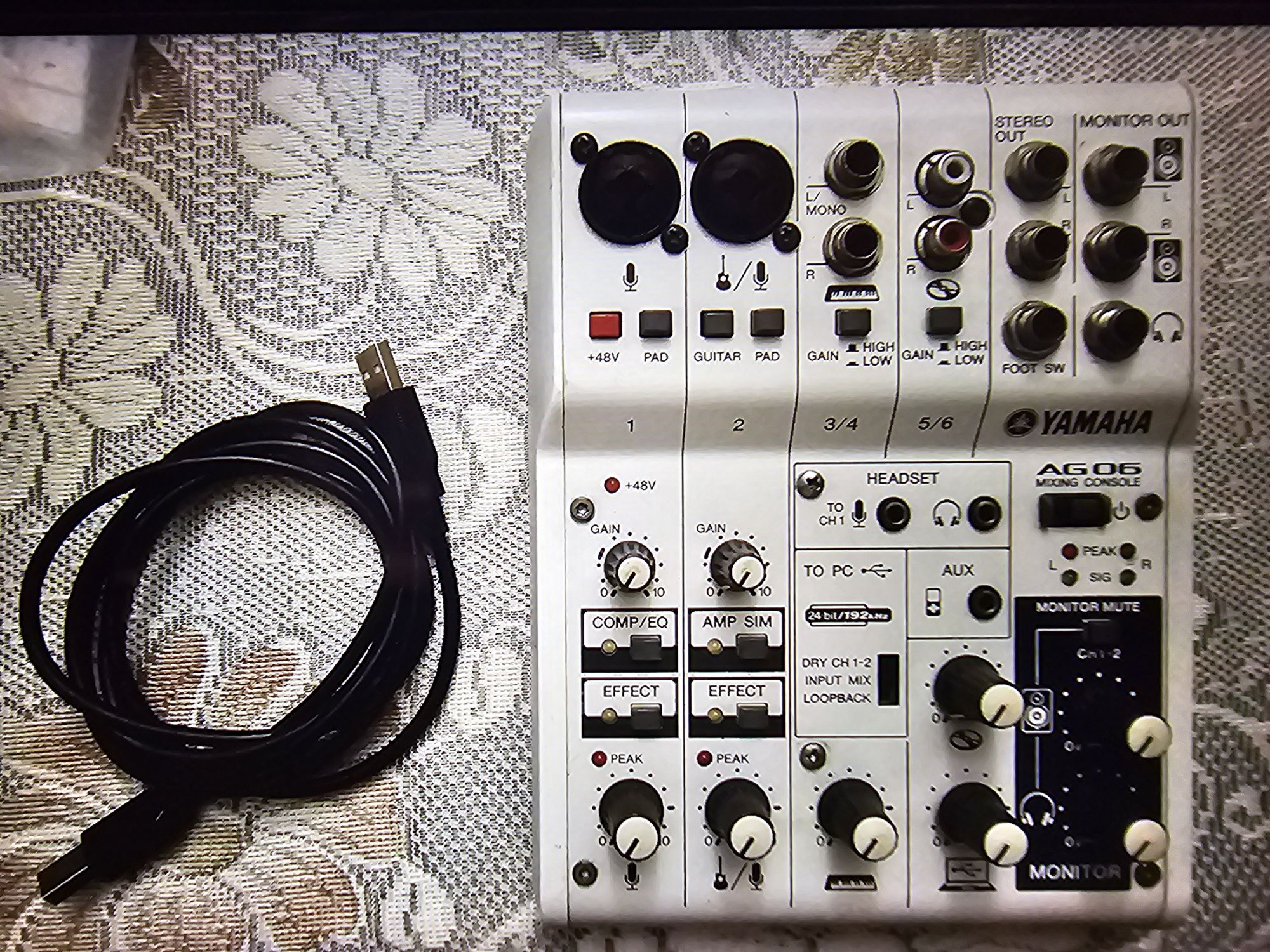

The AG06 from Yamaha is a compact 6-input mixer and USB interface with built-in DSP for sound-reinforcement and recording of small performances, podcasts, lectures and similar applications. Capable of recording and playback of high-resolution 24-bit/192 kHz sound, this mixer features two XLR/1/4" combo mic/line inputs, as well as stereo 1/4" and RCA line inputs with level control, and a Hi-Z switch for direct recording of guitar and bass. The mixer is compatible with Windows, Mac and iPad. One XLR/1/4" combo mic/line input is equipped with a D-PRE mic preamp that was originally designed by Yamaha for use in their high-end recording gear. This channel features switchable 48V phantom power for use with dynamic and condenser microphones, and also features a pad switch for recording loud sound sources such as guitar amplifiers. The AG06 mixer has two stereo 1/4" outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring, as well as an 1/8" aux input for monitoring portable devices and headset connectivity. Less Channels 6 Type Audio Mixer Controls Buttons, Faders, Knobs Digital Digital Equalizer Yes Headphone Out Yes Mic Input Yes Outputs 1/4 inch, USB Buses 1, 8 Crossfader No Faders 6 Gain Yes Freq Response 192 kHz/24-bit Phantom Power Yes Incl Software Cubase AI Software Comp Cubase, Ableton Live Exper Beginner, Intermediate Live Perf Yes Studio Prod Yes Home Use Yes Mobile DJ Yes Dimensions 6.1" x 2.5" x 8.0" (155mm x 63mm x 202mm) Weight 2.2 lbs (1.0 kg) Build Qual High Material Metal Portability Portable Incl Cables USB Cable USB Yes Bluetooth No Ethernet No Other Conn 1/4 inch, XLR Wi-Fi No Onboard Eff Yes Eff Types Compressor, EQ, Reverb Eff Params Compression, EQ, Reverb New Delhi Not Specified
